Products Description

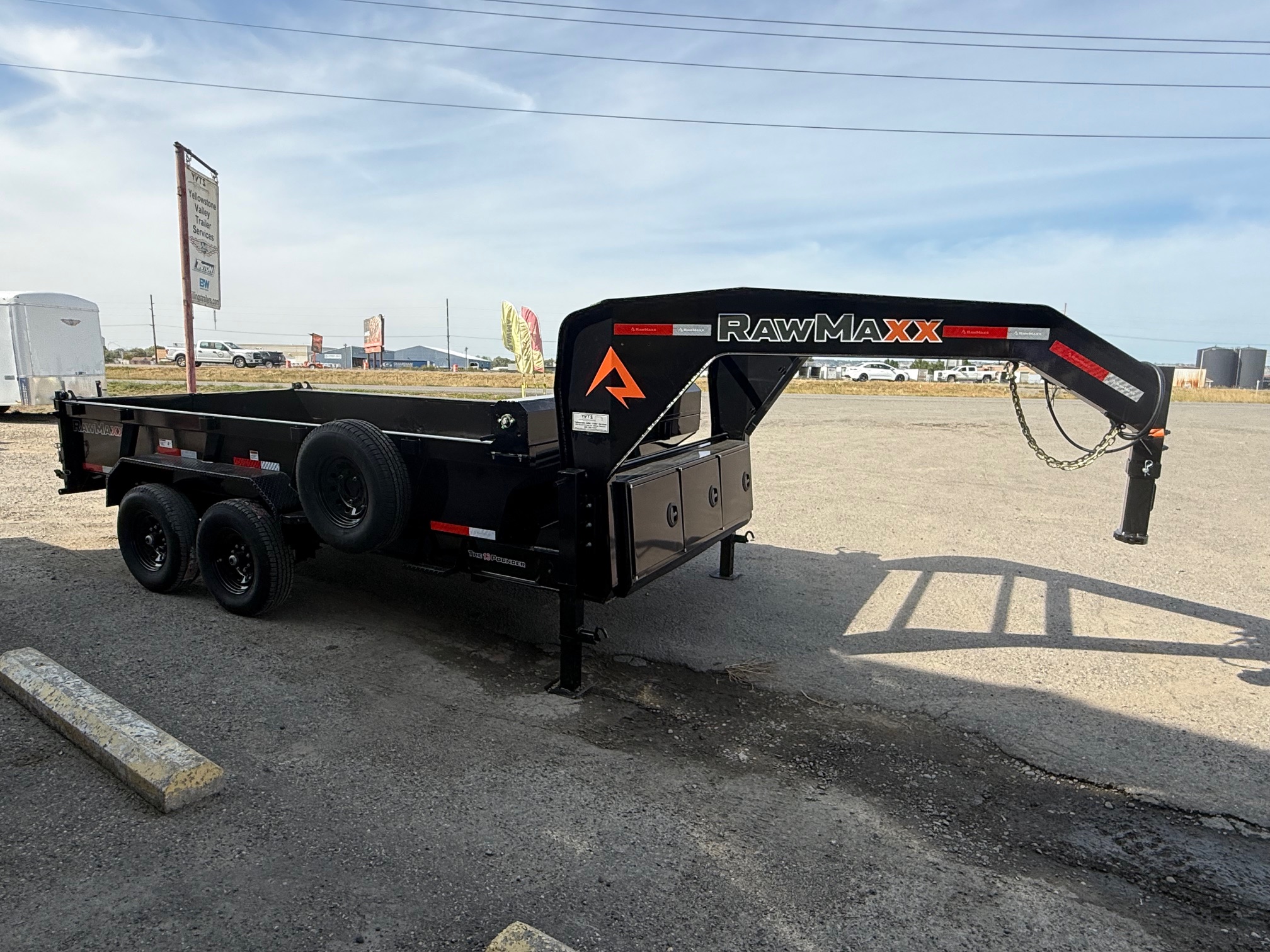

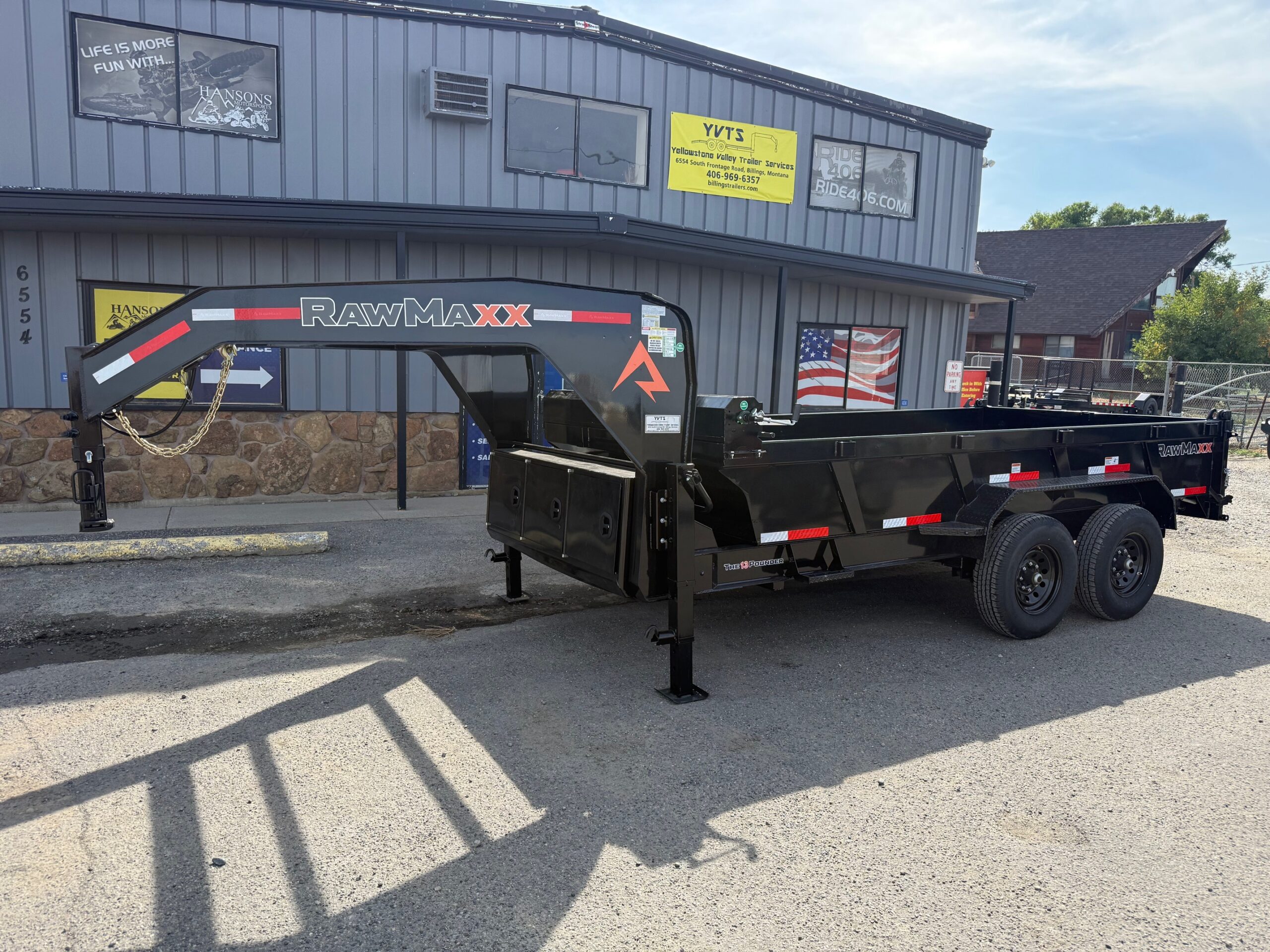

Raw Maxx LPXGN8314-14K Dump Trailer

STANDARD FEATURES:

• Length: 14‘
• Width: 83“
• Deck Height: 28“
• GVWR 14,000 lbs.
• GAWR 7,000 lbs.
• Empty Weight 5,650 lbs.
• Load Capacity 10,438 lbs.
• Main Frame 8″ x 13 lb. I Beam
• Cross-Bracing 4″ x 6″ x 3/16″ Tubing
• Dump Bed Width 83″
• Side Height 22″
• Capacity: 6.85 Cubic Yards
• Side Walls 10G Formed Plate
• Side Rail 10G Formed Plate
• Side Post 10G Formed Plate
• Flooring 7G Plate
• Fenders 12G Diamond Plate Fenders
• D-Rings 4 D-Rings Standard (Welded Inside Corners)
• State Pockets: 3 7/8″ x 1 13/16″ (ID)

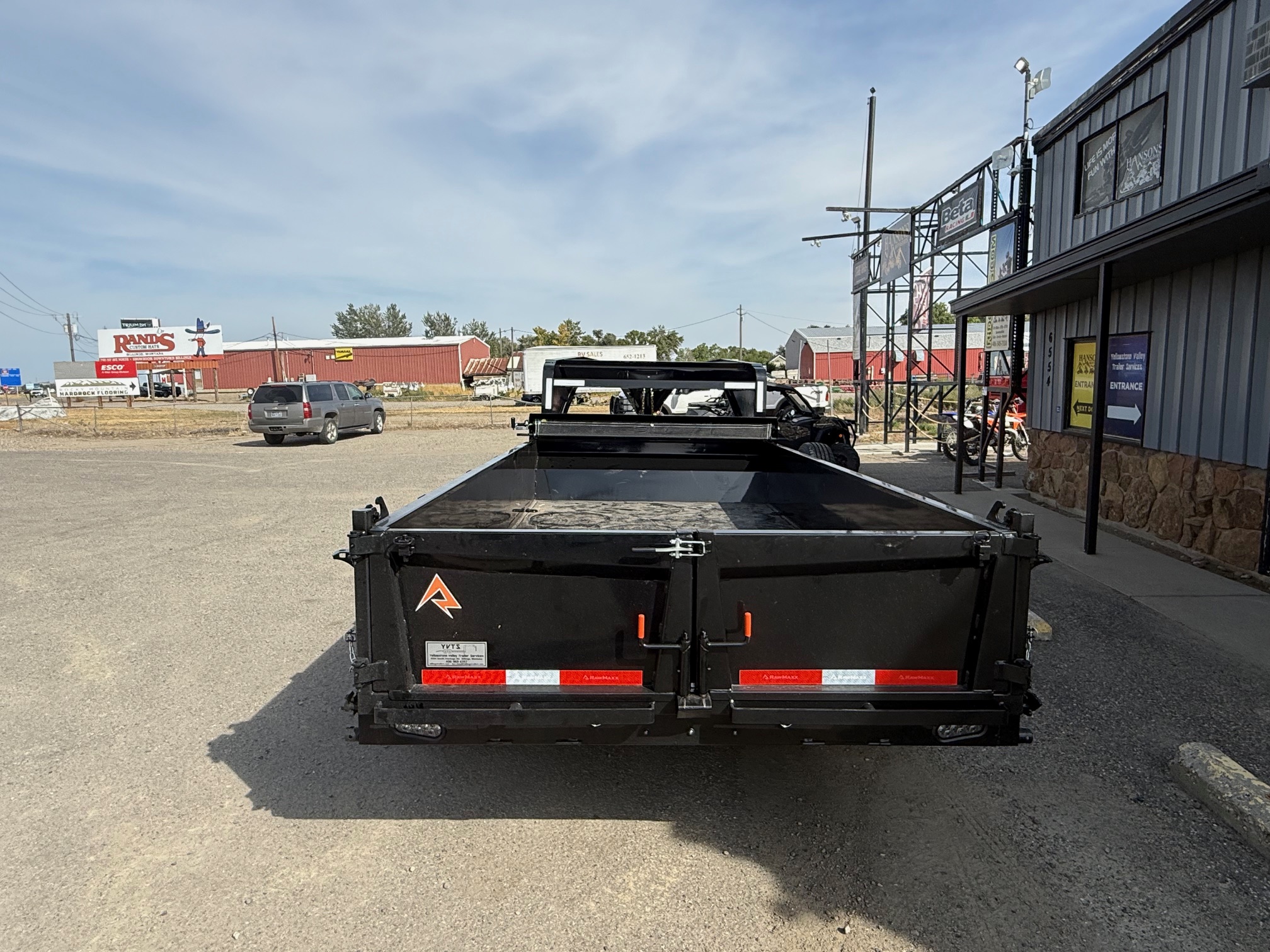

• Rear Gate: 3in1 Rear Gate
• Rear Door Latching System EZ Slam
• 6′ Slide Out Channel Ramps
• Manual Tarp Kit
• Hydraulic Power up / Down
• KTI Hydraulic Pump

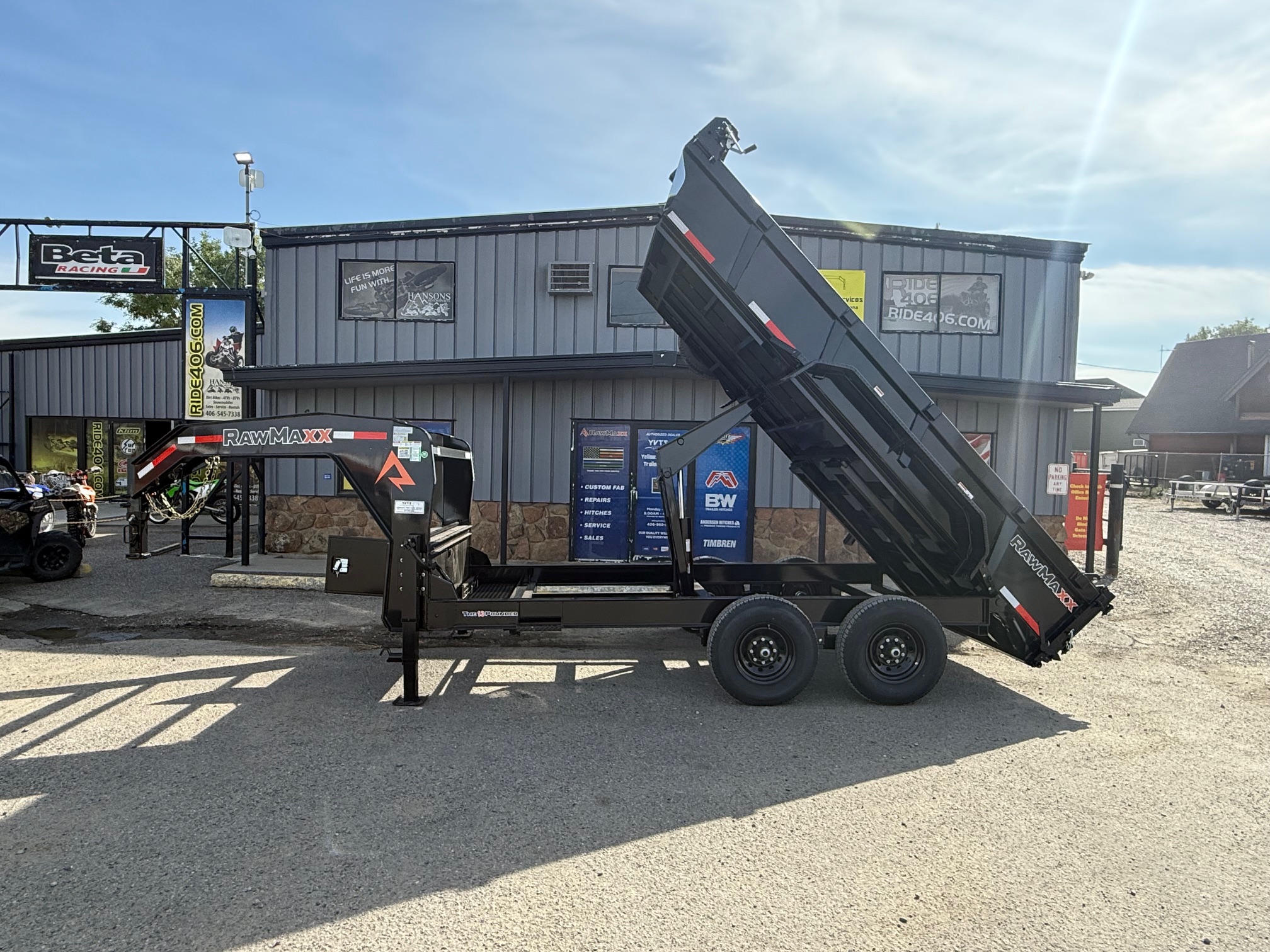

• Scissor Lift with 6″ x 20″ Cylinder
• Tilt Angle: 48°

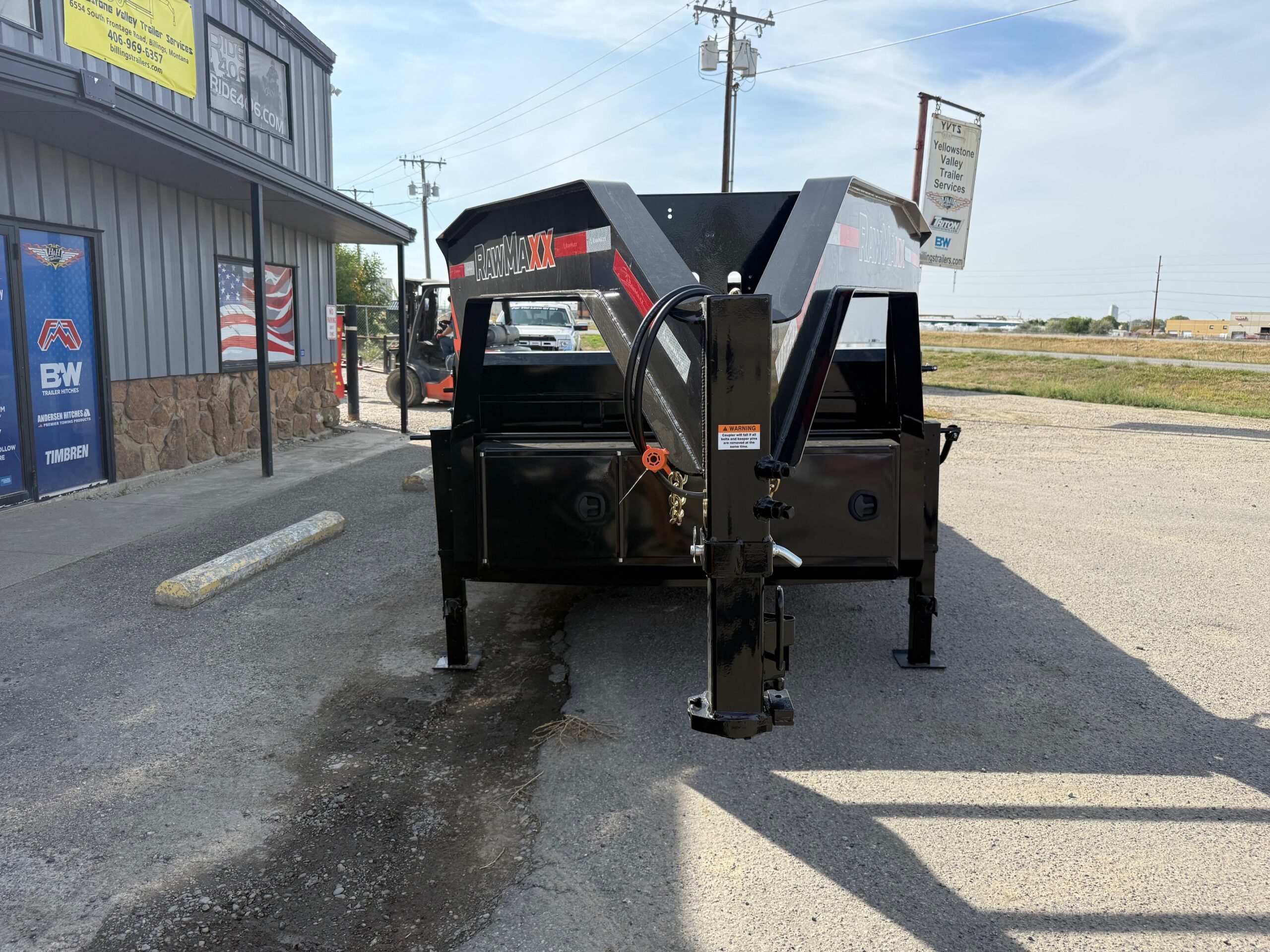

• 2 5/16″ Adjustable Height Gooseneck
• Dual 10,000 lb. Side Wind Spring Drop Leg Jacks

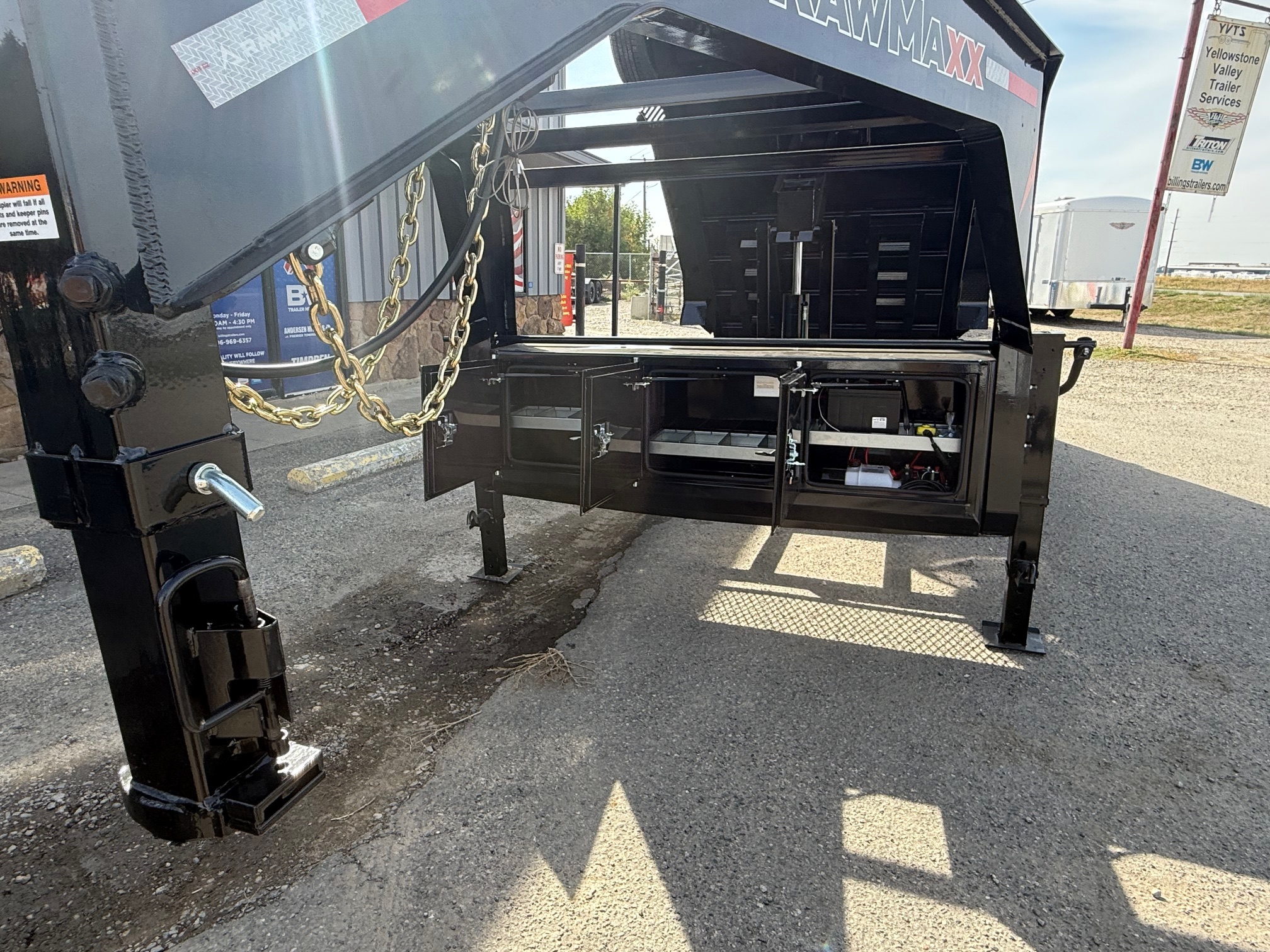

• Tool Box Between Risers
• Tandem 7K Spring Brake Axles
• 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
• 16″ Black Mod Steel Wheels
• Bolt Pattern: 8 on 6.5″
• Safety Chains: 3/8″ G70 Chains
• Spare Mount
• All Weather Proof Harness
• Market Lights: 3/4″ LED Bullet Lights
• Rear Lights: 6″ Oval DOT Approved LED Lights
• Powder Coated
• 5 Year Dexter Axle Warranty
• 3 Year Structural Warranty
• 1 Year Paint Warranty

UPGRADES:

• Matching Spare Tire and Wheel

CASH PRICE: $13,995.00
