Products Description

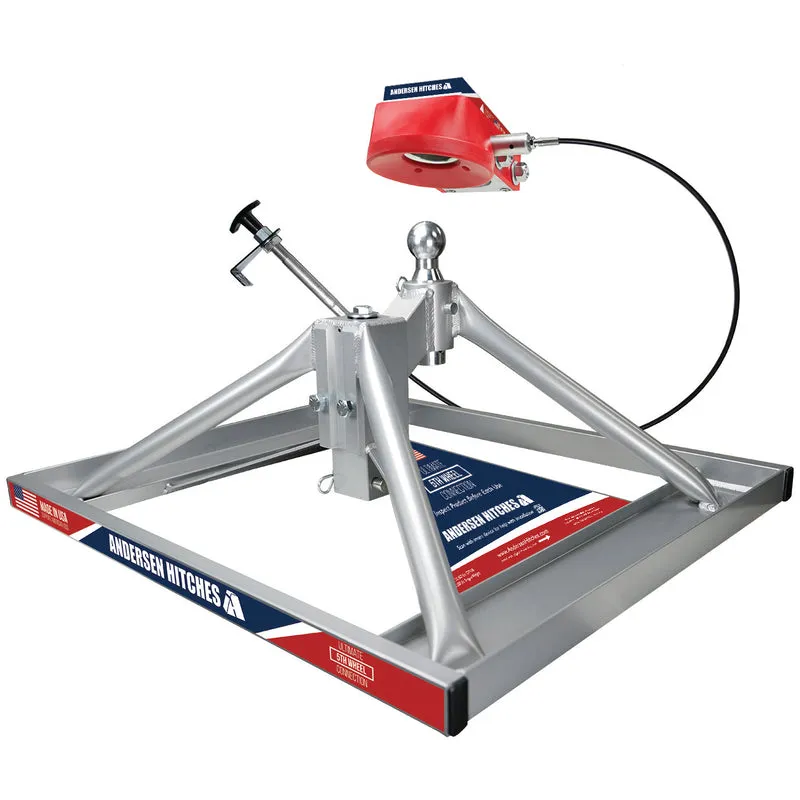

Ultimate 5th Wheel Connection

Achieve the ultimate 5th wheel experience from installation to destination with the Ultimate 5th Wheel Connection. Extremely strong and lightweight, the Ultimate Connection – Gooseneck Mount base weighs less than 40 lbs and tows up to 24,000 lbs GTWR (Gross trailer weight rating) and 4,500 lbs tongue weight. The Rail Mount tows up to 20,000 lbs GTWR.

• Gooseneck Mount.
• Using any Ultimate 5th Wheel Connection with a Rota-Flex Pin Box requires a Rota-Flex Lockout Kit.
• MORryde Pin Box: This is compatible with all versions of the Ultimate Connection ONLY when it is installed with MORryde part # RPB77-006
• The Ultimate Connection base weighs less than 40 lbs.
• Tows up to 24,000 lbs GTWR (Gross Trailer Weight Rating)
• The funnel on the kingpin coupler block provides a 3” offset, eliminating the hassle of perfectly lining up the hitch ball with the kingpin.
• Funnel portion is covered under a lifetime warranty

Which Ultimate Connection do I need?

Rail Mount (#AHI3200)

• Steel rail mount fits industry-standard rails (sold separately)
• 11-1/2″ tall base
• 20,000 lbs GTWR
• 4,500 lbs tongue weight

Gooseneck Mount (#AHI3220)

• Aluminum Gooseneck Mount
• 13″ tall base
• 24,000 lbs GTWR
• 4,500 lbs tongue weight

Gooseneck Mount – Toolbox Version (#AHI3220TBX)

• Aluminum Gooseneck Mount
• 13″ tall base
• 3.5″ base offset accommodates for truck beds with a tool box
• 24,000 lbs GTWR
• 4,500 lbs tongue weight

Raised Gooseneck Mount (#AHI3217)

• Aluminum Gooseneck Mount
• 15″ tall base
• 24,000 lbs GTWR
• 4,500 lbs tongue weight
• Recommended for trucks with side rails that 21-1/2″ or higher

Lowered Flatbed Mount (#AHI3221)

• Aluminum Gooseneck Mount
• 9″ tall base
• 24,000 lbs GTWR
• 4,500 lbs tongue weight

Lowered Flatbed Mount – Toolbox version (#AHI3221TBX)

• Aluminum Gooseneck Mount
• 9″ tall base
• 3.5″ base offset accommodates for truck beds with a tool box
• 24,000 lbs GTWR
• 4,500 lbs tongue weight
